Dialysis Access (AVF, AVG and Permcaths)

Dialysis access is a lifeline for patients with kidney failure. An AV fistula, created by a vascular surgeon, is the most reliable and natural method for long-term hemodialysis. When not feasible, AV grafts or permcaths may be used. Our goal is to ensure safe and durable dialysis access for every patient.

AV Fistula Aneurysms
curve

Dialysis Access: Understanding AV Fistula, AV Grafts and Permcath

For patients with kidney failure, dialysis becomes a routine part of life — a life-sustaining process that removes toxins and excess fluid from the body when the kidneys are no longer able to. To perform dialysis effectively, a reliable and safe access to the bloodstream is essential.

This is where dialysis access surgery plays a critical role. As vascular surgeons, we specialize in creating and maintaining these access points. The most preferred and natural method is the arteriovenous (AV) fistula, but alternatives like AV grafts and permcaths (tunneled catheters) are also used when required.

What Is an AV Fistula?

An AV fistula is a direct surgical connection between an artery and a vein, typically in the arm. It is the gold standard access for hemodialysis because it is made using your body’s own blood vessels, making it durable and less prone to complications.

The procedure is simple and done under local anesthesia. Once created, the fistula takes about 4–8 weeks to mature, during which the vein becomes thicker and stronger to handle repeated needle insertions during dialysis.

Why Is an AV Fistula Preferred?

AV fistulas are the first choice for long-term dialysis access, recommended by nephrologists and surgeons worldwide.

Key Benefits:

BenefitDescription
Long-lastingCan function for years if well maintained.
No artificial materialMade from your body’s natural tissues.
Lower infection riskMuch safer than artificial access.
Less risk of clottingBlood flow remains steady.
Faster and more efficient dialysisBetter clearance during sessions.
Fewer hospital visitsLess prone to emergencies compared to other options.

How Is an AV Fistula Created?

The process begins with a detailed evaluation of your blood vessels. This includes:

  • Clinical examination by the vascular surgeon.
  • Ultrasound (Doppler study) – A painless scan that measures the size and quality of your veins and arteries.

This step is called “vessel mapping” or “vessel planning” and helps us decide the best site for your AV fistula — usually in the forearm or upper arm.

Once the right spot is chosen:

  • The procedure is done under local anesthesia.
  • A small cut is made to connect a nearby artery to a vein.
  • This causes more blood to flow into the vein, making it larger and stronger.

After the surgery, the fistula needs 4 to 8 weeks to mature. During this time:

  • The vein walls thicken.
  • Blood flow increases.
  • Dialysis nurses can feel a vibration (called a thrill) over the site.

Once matured, two needles are inserted into the fistula during dialysis: one to draw blood out, and another to return it after filtering.

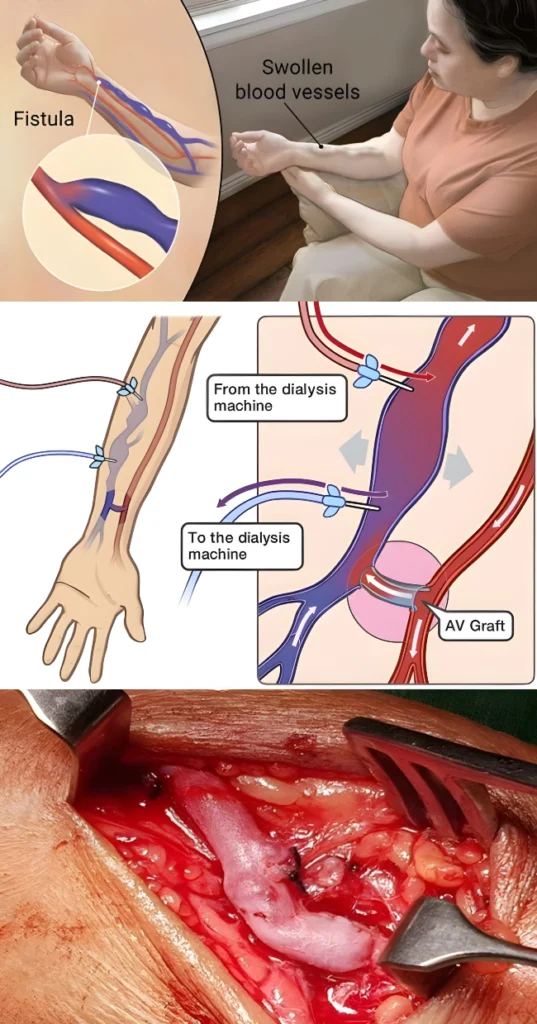

AV Fistula

Challenges With AV Fistula

In some patients, AV fistula creation may not be possible due to:

  • Small or weak veins
  • Prior surgeries or injuries to the arm
  • Multiple failed fistulas
  • Advanced age or fragile vessels

In such cases, alternative access options are explored.

What If an AV Fistula Cannot Be Made?

Central Veinstenosis

AV Graft

If a patient’s veins are not suitable for an AV fistula, the next best option is an AV graft.

An AV graft is a synthetic tube (made of a special medical material called PTFE) that connects an artery to a vein, usually in the upper arm. The graft acts as a bridge for the blood flow and is used like a fistula for dialysis.

Features of an AV Graft:

  • Used when veins are unsuitable
  • Can be used within 2–3 weeks after surgery
  • Inserted between an artery (elbow level) and a vein (shoulder level)
  • Easier to place, especially in elderly or obese patients

Things to Watch Out For:

  • Slightly higher risk of infection compared to AV fistula
  • May develop clots or narrowing more frequently
  • Needs more frequent monitoring

However, with proper care and regular follow-ups, AV grafts can function effectively for long durations.

Permcath (Tunneled Dialysis Catheter)

If no fistula or graft can be placed in the arms, or if immediate dialysis is needed, a permcath is used.

A Permcath is a soft plastic tube inserted into a large vein in the chest or thigh, with the tip sitting close to the heart. It is tunneled under the skin for stability and lower infection risk compared to temporary catheters.

When Permcaths Are Used:

  • Emergency dialysis without time for a fistula to mature
  • Vein access not possible in arms
  • As a bridge to AV fistula/graft in patients with complex medical conditions

Risks of Permcath:

  • Higher chance of infection
  • Can block or malfunction over time
  • Not ideal for long-term use unless no other access is available

A Permcath is considered a temporary or intermediate solution and is best avoided as a long-term option.

Which Access Is Right for You?

Every patient is different. The choice of access depends on:

  • Vein size and quality
  • Medical condition
  • Urgency of dialysis
  • Prior surgeries or failed access
  • Expected duration on dialysis

Summary Table: AV Fistula vs AV Graft vs Permcath

FeatureAV FistulaAV GraftPermcath
MaterialNatural (your veins)Synthetic tubePlastic catheter
Infection RiskLowModerateHigh
LongevityLongestModerateShort-term
Time to Use4–8 weeks2–3 weeksImmediate
Insertion SiteForearm/armArmChest/thigh
Best ForLong-term dialysisPoor veinsUrgent use or no access

Caring for Your Dialysis Access

Whatever the type of access, proper care is crucial to avoid complications.

  • Keep the area clean and dry
  • Check daily for swelling, redness, or bleeding
  • Wash hands before touching the site
  • Inform your dialysis team about any changes
  • Sleeping on the access arm
  • Wearing tight clothes over the site
  • Allowing blood pressure or IVs on that arm (for fistula/graft)

These are office-based procedures done under local anesthesia or sedation. The goal is to seal the faulty veins from inside, so blood flows through healthier veins.

Endovenous Laser Ablation (EVLA)

  • A thin fiber is inserted into the vein, and laser energy is used to seal it shut.
  • No cuts, stitches, or hospitalization required.
  • Quick recovery, minimal pain.

Radiofrequency Ablation (RFA)

  • Uses heat via radio waves to close off the vein.
  • Similar outcomes to laser, with low complication rates.

Endovenous Glue Therapy

  • A special medical glue is used to seal the vein.
  • No thermal energy or post-op stockings needed.
  • Ideal for needle-phobic or elderly patients.

Microwave Ablation

  • A newer modality that uses microwave energy.
  • Efficient in treating large-caliber veins with minimal heat spread.

Sclerotherapy

  • Suitable for smaller veins and cosmetic concerns (spider veins).
  • A medicine is injected into the vein, causing it to collapse and fade.
  • Performed alongside endovenous procedures.
  • Tiny incisions are made to hook out bulging veins.
  • Helps reduce symptoms and improves cosmetic appearance.
  • Removal of the entire saphenous vein via open surgery.
  • Rarely done today due to the success of endovenous techniques.
  • Reserved only for select cases where endovenous access isn’t possible.

Regular ultrasound monitoring may be done to assess function and prevent blockage.

Why Choose a Vascular Surgeon for Dialysis Access?

As vascular specialists, we focus on:

  • Pre-operative vessel mapping
  • Creating and maintaining high-quality, durable access
  • Managing complications like blockage, infection, bleeding, or failure
  • Offering advanced options like balloon angioplasty, thrombectomy, and stent placement

Our goal is to maximize the lifespan of your access, reduce complications, and ensure smooth, effective dialysis sessions.

Dialysis access is more than just a surgical procedure — it’s a lifeline.

Dialysis Access: Your Lifeline to Better Health

A well-planned access allows for efficient dialysis, fewer hospital admissions, and better quality of life. If you or your loved one is preparing for dialysis, consult a vascular surgeon early. We’re here to help you plan your journey with confidence, safety, and the best long-term outcomes.
